Mid-Range
Mid-RangeFull AI Builder
AI Builder Workstation
$2,902
24 GB VRAM580W TDP~36dB8 components
Inside This Build
Components
| Category | Component | Price | Rationale | Buy |
|---|---|---|---|---|

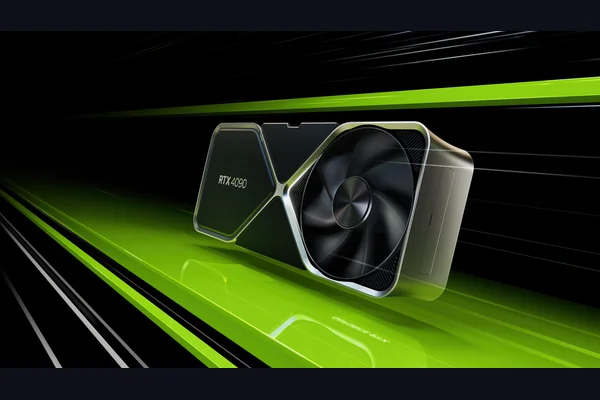

| gpu |  NVIDIA GeForce RTX 4090 | $1,799 | 24GB VRAM is the minimum for the Full AI Builder workflow: Qwen 2.5 Coder 32B (Q4, ~18GB) + nomic-embed (0.5GB) concurrently with VRAM headroom. The RTX 4090's 1008 GB/s bandwidth delivers fast token generation. | |
| cpu |  AMD Ryzen 7 7700X | $249 | 8-core Zen 4 handles IDE, models loading, and embeddings simultaneously. Fast single-thread for responsive Cursor/VS Code. | |
| motherboard |  MSI MAG B650 Tomahawk WiFi | $189 | Full ATX B650 with robust VRMs for the 7700X. WiFi 6E. PCIe 4.0 x16. Room for expansion. | |
| ram | 64GB DDR5-5600 (2x32GB) | $159 | 64GB system RAM is essential for builders — IDE, Docker, model loading, and embeddings all compete for system memory. This is the differentiator vs the mid-range build. | |
| storage |  2TB Samsung 990 Pro NVMe | $159 | Top-tier NVMe for fast model swaps. 7,450 MB/s sequential read means swapping between QwQ-32B and Qwen Coder 32B takes seconds, not minutes. | |
| psu |  Corsair RM850x 850W 80+ Gold | $129 | 850W for the RTX 4090 (450W TDP) with comfortable headroom. Fully modular. Essential — do not underspec the PSU with a 4090. | |
| case | Fractal DesignFractal Design Torrent Compact | $129 | Best-in-class airflow case. 336mm GPU clearance for the 4090. Open front design keeps the 4090 cool under sustained inference loads. | |
| cooler | NoctuaNoctua NH-D15S | $89 | Premium air cooler — silent under load. Single-fan variant for GPU clearance. Handles the 7700X at near-silent noise levels. | |
| Total | $2,902 | |||
Shop Components
Search links — prices and availability vary by retailer.
Buy Used GPU
Prices and availability vary. Inspect hardware before purchasing.
What This Runs
AI models tested on this build's hardware.
| Model | Quant | Speed |
|---|---|---|
| Qwen 2.5 Coder 32B Instruct | Q4_K_M | 25 tok/s |
| QwQ 32B Preview | Q4_K_M | 24 tok/s |
| Llama 3.1 8B Instruct | Q8_0 | 95 tok/s |
| DeepSeek Coder V2 Lite 16B | Q5_K_M | 55 tok/s |
| Codestral 22B | Q5_K_M | 35 tok/s |
| Gemma 2 27B Instruct | Q4_K_M | 22 tok/s |
| nomic-embed-text v1.5 | FP16 | — |
| all-MiniLM-L6-v2 | FP16 | — |
| FLUX.1 Dev | FP16 | — |
| Whisper Large V3 | FP16 | — |
AI Builder Workflow: Model Fine-Tuning & Training
Fine-tune language models locally with QLoRA, LoRA, and full fine-tuning. Train custom adapters for domain-specific tasks without sending proprietary data to third-party APIs. VRAM requirements scale with model size and method: QLoRA fine-tuning a 7B model fits in 16GB, while full fine-tuning of 32B models needs 48GB+. System RAM matters — gradient checkpointing and dataset loading use 2-4x the model's VRAM in system memory.
Tools in this workflow
AxolotlUnslothHugging Face TRLLLaMA FactoryPEFT
Concurrent VRAM Usage
10 GB of 24 GB
14 GB headroom for additional workloads
API Cost Replacement
If you're paying ~$200/month for cloud API access, this build pays for itself in 10 months.
Based on OpenAI fine-tuning API pricing ($8/1M training tokens, 3-5 fine-tuning runs/month on 50K-row datasets). Local fine-tuning is unlimited iterations with zero per-token cost. Electricity cost ~$15/mo at 6hr/day GPU usage during training. Mid-Range Workstation at ~$1,400. Privacy advantage is the real differentiator — proprietary data never leaves your machine.
Upgrade Path
Already near-optimal for single-GPU. Next step is dual RTX 3090 used (~$900 each) for 48GB total VRAM, enabling Llama 3.1 70B at Q4. Or move to Apple M4 Max 128GB for silent, unified-memory operation.
Target Use Cases
CodingAI CodingAI BuildingEmbeddingsReasoning
Last updated: 2026-03-01.
